Name: Vanadium Catalyst for Sulfuric Acid Production
Availability: InStock

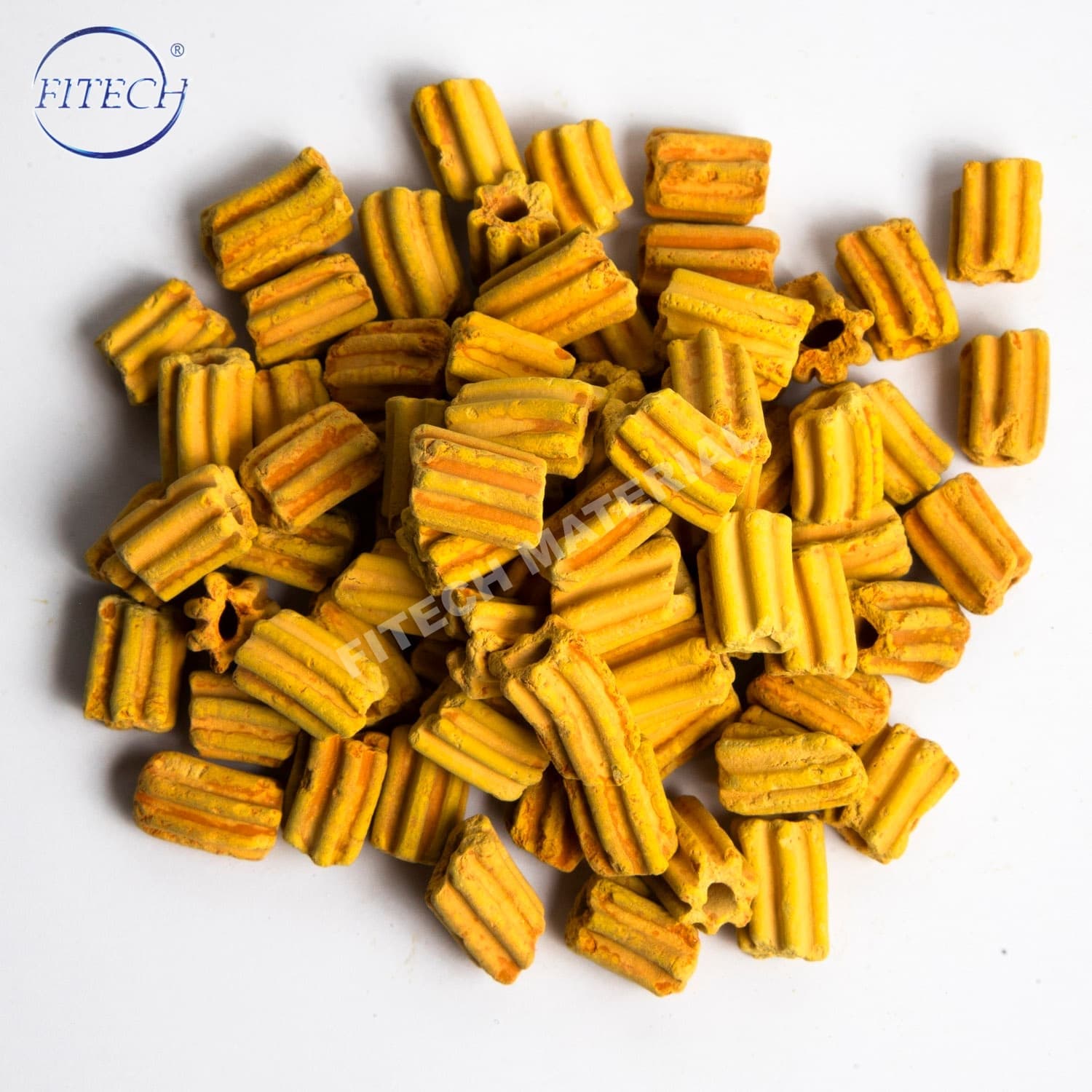

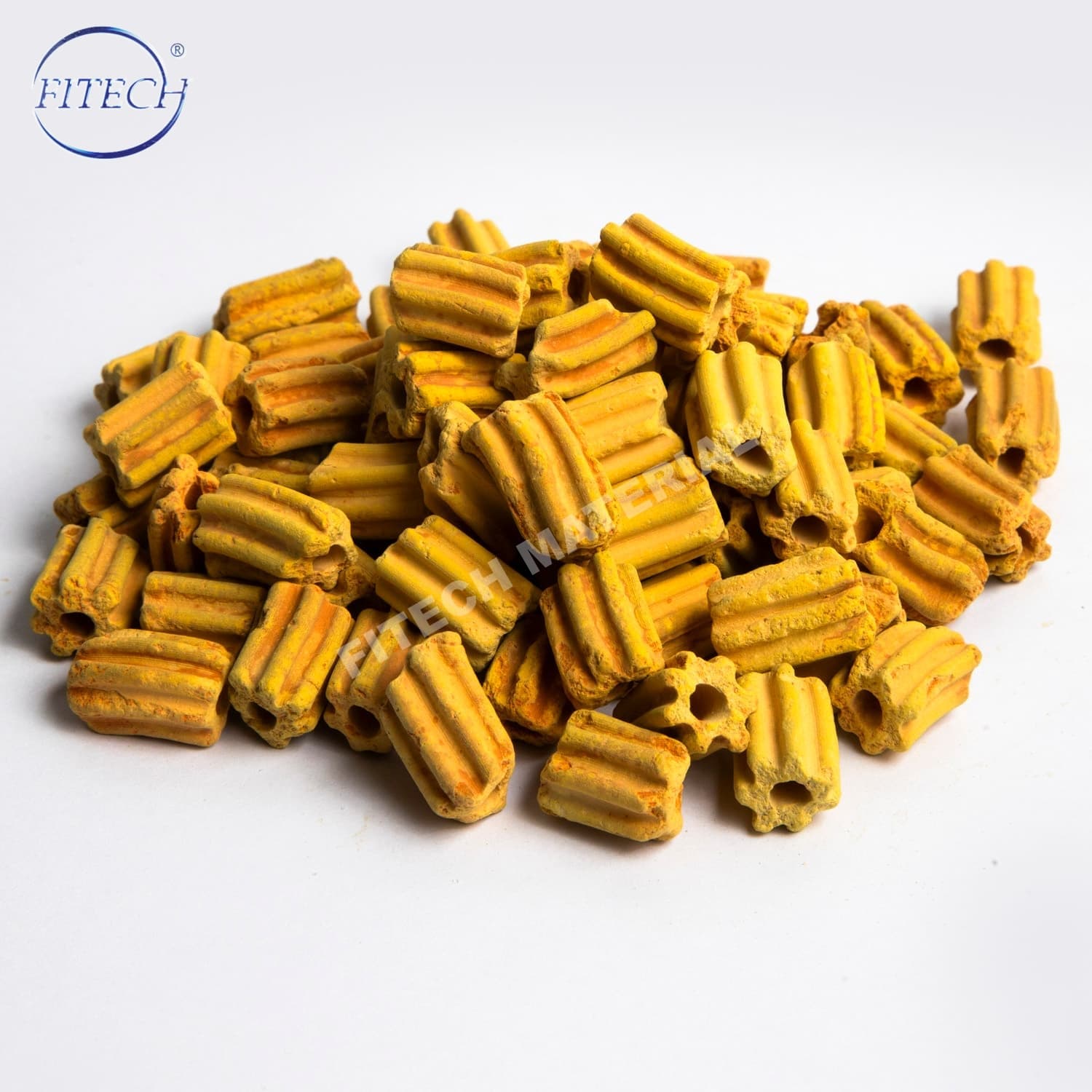

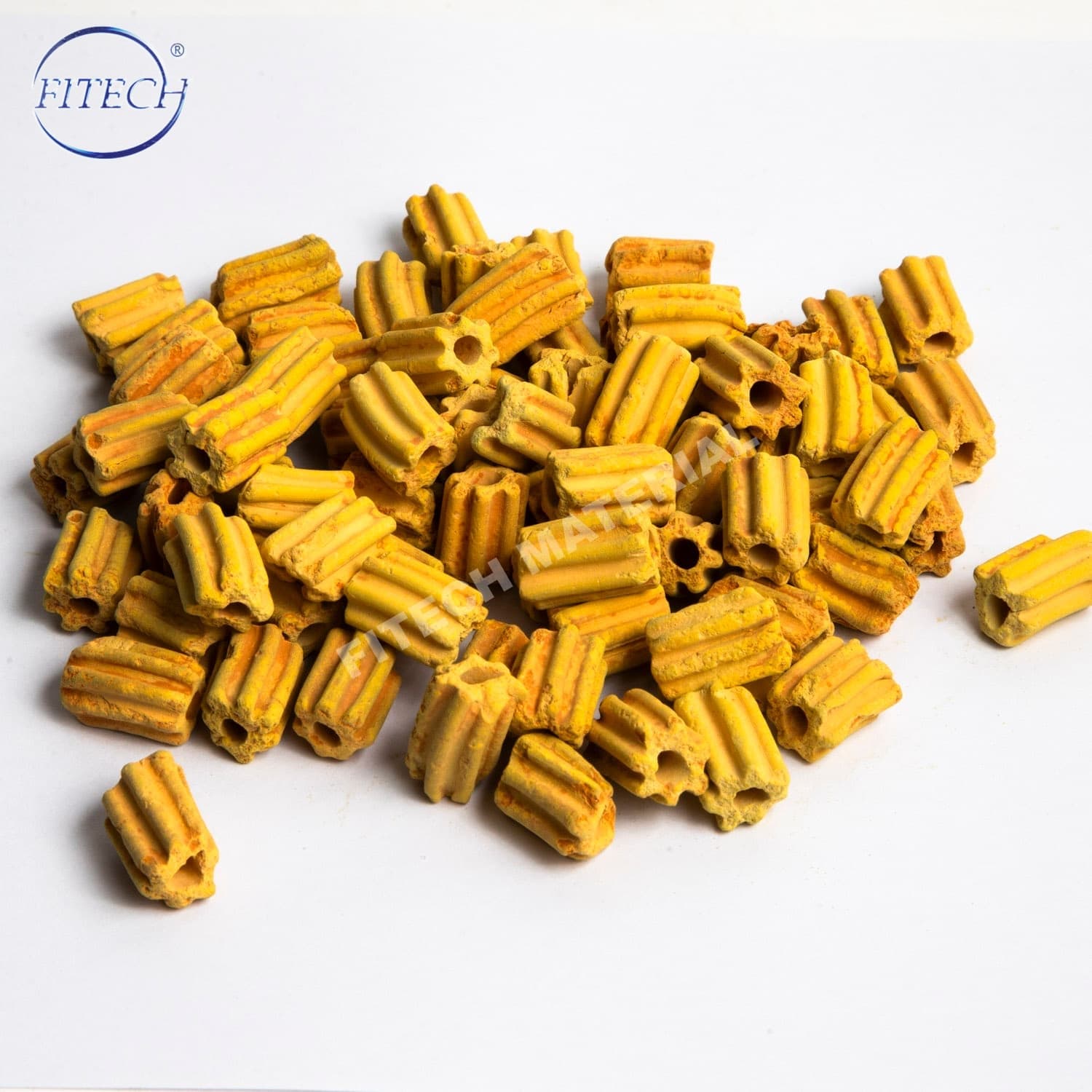

Vanadium Catalyst for Sulfuric Acid Production

Our good quality Sulfuric Acid Catalysis Used Vanadium pentoxide Catalyst is usually contains 5% ~ 10% vanadium pentoxide (V2O5), which is the main component with catalytic activity. In addition to vanadium pentoxide, the catalyst also contains potassium oxide (K2O) or sodium oxide (Na2O) as co-catalyst to increase the activity of vanadium catalyst. Diatomite (mostly silicon dioxide) is used as the carrier to increase the surface area of the catalyst's active component in contact with the gas. Some vanadium catalysts also contain substances such as tin oxide, antimony oxide, iron oxide and alumina

Fórmula molecular :
V2O5
Código HS :
3815190000
Lugar de origen :
China
Embalaje :
200L iron drum
Apariencia :
Yellow Daisy
Pureza :
7.5-8.5%

Detalles del producto

Basic information

Sulfuric Acid Catalysis Used Vanadium Catalysts are used in the sulfuric acid industry to efficiently oxidize sulfur dioxide (SO₂) to sulfur trioxide (SO₃), and are also applied in the synthesis of aniline black dyes, the production of organic chemical raw materials, and flue gas desulfurization and denitrification, among other fields. In industrial applications, it is necessary to control the temperature sensitivity of catalysts, optimize gas distribution through alloy meshes, and establish an activity attenuation monitoring system. Spent vanadium catalysts can recover vanadium oxides through processes such as ion exchange and leaching calcination, with a recovery rate of over 90%.

Specification

Type

FIT111M

FIT118M

FIT211M

FIT218M

FIT222M

Shape

Daisy

Chemical Composition

V2O5

7~9%

V2O5

6~8%

V2O5

6~8%

V2O5

7~9%

V2O5

7~9%

Color

Yellow

7~12%

7~11%

HS Code

3815190000

1~2%

Type

FIT111M/FIT118M

/FIT211M/FIT218M

/FIT222M

4~10%

Package

200L drum

Strength

40N/cm min

Diameter (Outer/Inner)

13/3.5~4.5mm

11/3~4mm

11/4mm

Pallet

4 drums per pallet

Length

12~17mm

Attrition Loss

5%max

16CBM per 1×20'FCL

Approximate Bulk Density

420~500kg/m3

380~430kg/m3

Light-off temperature

370°C

360°C

Active Ingredient

Vanadium Pentoxide

Operating Temperature

400~630°C

400~550°C

400~630°C

Measured Activity after

Temperature Resistance

91%min

(485 ℃)

50%min

(410 ℃)

Origin

China

Gas Concentration (SO2)

0~15% Mole

Application

Sulfuric Acid Catalysis

min O2/SO2 Ratio

0.6mole/mole

Application

1. Sulfuric Acid Industry: Catalyzing the oxidation of SO₂ to SO₃;

2. Environmental Protection (NOx removal from flue gas): In SCR technology, catalyzing the reduction of NOx to N₂;

3. Organic Chemical Industry: Catalyzing selective oxidation reactions of hydrocarbons to produce various important chemical intermediates;

4. Inorganic Chemical Industry: As a raw material for the production of other vanadium chemicals.

Sulfuric Acid Industry
NOx Removal from Flue Gas
Organic Chemical Industry
Inorganic Chemical Industry

Packing

Certificates

The products have been approved by FDA,REACH,ROSH,ISO and other certification, in line with national standards.
